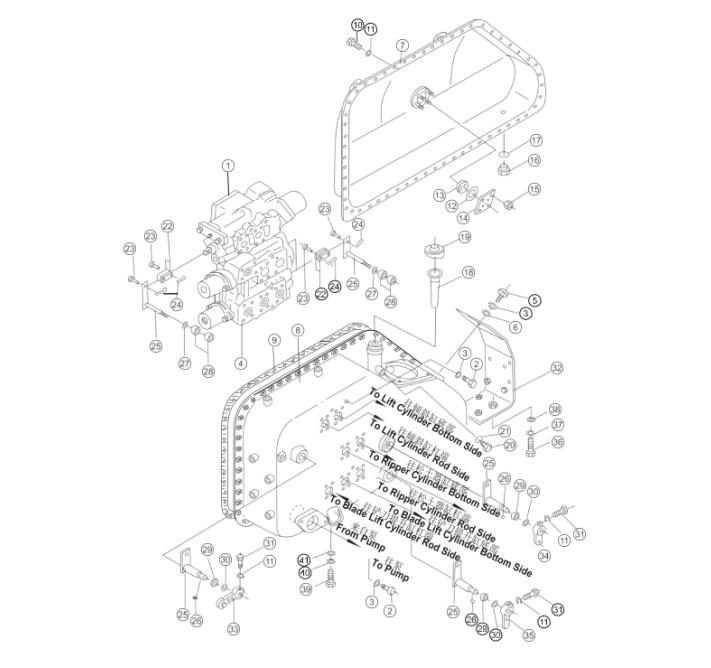

Shantui SD32 Work Equipment Control Valve Assembly 701-43-24002
Part Name: Work Equipment Control Valve Assembly
Part Number: 701-43-24002
Machine Model: SD32
Hotline:0086-18052293627 (whatsapp & wechat)
Mail: bulldozer@cnfocusgroup.com
| 序号 |
部件号 |
|
数量 |
| NO. |
PART NO. |
|
Q'TY |
| 0 |
175-60-29006 |
Oil tank ass'y |
1 |
| 1 |
701-41-11006 |
Tilt oil cylinder control valve ass'y |
1 |
| 2 |
01010-51230 |
Bolt M12*30 |
7 |
| 3 |
01602-21236 |
Washer 12 |
11 |
| 4 |
701-43-24002 |
Work equipment control valve ass'y |
1 |
| 5 |
01010-51235 |
Bolt M12*35 |
4 |
| 6 |
01643-31232 |
Washer 12 |
4 |
| 7 |
175-60-39121 |
Oil tank |
1 |
| 8 |
175-60-27119 |
Oil tank |
1 |
| 9 |
175-60-27132 |
Shim |
1 |
| 10 |
01010-51025 |
Bolt M10*25 |
55 |
| 11 |
01602-21030 |
Washer 10 |
58 |
| 12 |
07715-11257 |
Ring |
1 |
| 13 |
07715-00651 |
Cover |
1 |
| 14 |
07715-21074 |
Rear cover |
1 |
| 15 |
01598-11011 |
Nut M10 |
4 |
| 16 |
07044-13620 |
Screw plug |
1 |
| 17 |
07002-13634 |
O-ring |
1 |
| 18 |
07056-10045 |
Filter screen |
1 |
| 19 |
07051-00000 |
Filler cap |
1 |
| 20 |
701-30-63130 |
Screw plug |
1 |
| 21 |
07002-12034 |
O-ring |
1 |
| 22 |
141-60-32170 |
Yoke |
6 |
| 23 |
04205-01028 |
Pin shaft |
6 |
| 24 |
04050-03016 |
Cotter pin |
6 |
| 25 |
175-60-29140 |
Shaft |
3 |
| 26 |
04010-10519 |
Woodruff Key |
3 |
| 27 |
175-60-29150 |
Washer |
3 |
| 28 |
GB290-HK2520 |
Needle roller bearing |
6 |
| 29 |
154-60-12370 |
Oil seal |
3 |
| 30 |
01640-22440 |
Washer 24 |
3 |
| 31 |
01010-51040 |
Bolt M10*40 |
3 |
| 32 |
175-60-27371 |
Bracket |
1 |
| 33 |
175-60-29120 |
Arm |
1 |
| 34 |
195-60-13120 |
Arm |
1 |
| 35 |
175-60-27310 |
Arm |
1 |
| 36 |
01010-51440 |
Bolt M14*40 |
4 |
| 37 |
01602-21442 |
Washer 14 |
4 |
| 38 |
01643-31445 |
Washer 14 |
4 |
| 39 |
01010-51850 |
Bolt M18*50 |
5 |
| 40 |
01602-21854 |
Washer 18 |
5 |
| 41 |
01643-31845 |
Washer 18 |
5 |
|
|
|
|
