Shantui SD13 Straight Tilt Blade Assembly 10Y-80B-60000
Part Name: Straight Tilt Blade Assembly
Part Number: 10Y-80B-60000
Machine Model: SD13
Hotline:0086-18052293627 (whatsapp & wechat)
Mail: bulldozer@cnfocusgroup.com
|
|

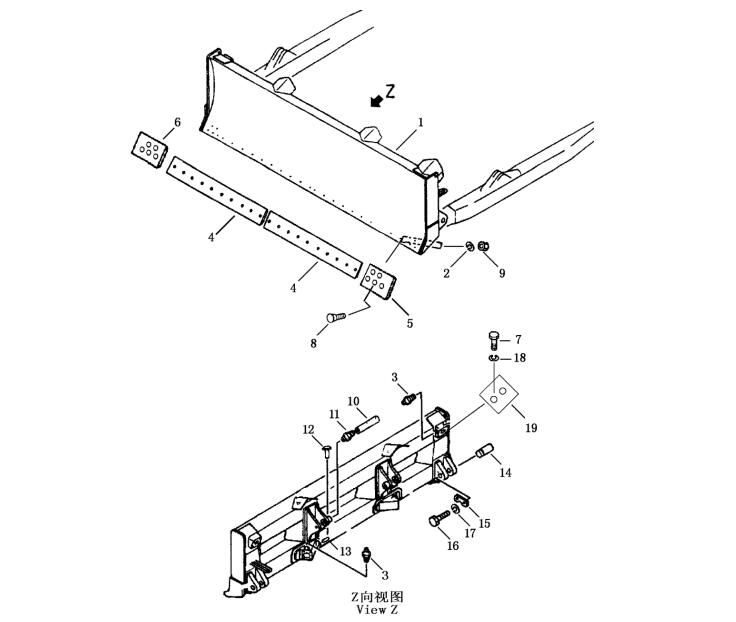

FIG.701 STRAIGHT TILT BLADE |
|
|
| Index No. |
Part No. |
Description |
SD13 |
SD13S |
| 1 |
10Y-80B-60000 |
blade |
1 |
|
|
10S-80B-30000 |
blade |
|
1 |
| 2 |
01643-31845 |
washer |
28 |
28 |
| 3 |
07020-01018 |
fitting, grease |
4 |
4 |
| 4 |
10Y-80-00005 |
edge cutting |
2 |
|
|
10S-80B-00001 |
edge cutting |
|
2 |
| 5 |
10Y-80B-00002 |
bit, end, L.H. |
1 |
|
|
10S-80B-00003 |
bit, end, L.H. |
|
1 |
| 6 |
10Y-80B-00001 |
bit, end, R.H. |
1 |
|
|
10S-80B-00002 |
bit, end, R.H. |
|
1 |
| 7 |
01010-51225 |
M12×25 bolt |
4 |
4 |
| 8 |
154-71-41270 |
bolt |
28 |
|
|
16L-80-00024 |
bolt |
|
28 |
| 9 |
154-70-22270 |
nut |
28 |
|
|
16L-80-00001 |
nut |
|
28 |
| 10 |
10Y-80-00010 |
pin |
2 |
2 |
| 11 |
07020-01018 |
fitting, grease |
2 |
2 |
| 12 |
04050-04015 |
pin |
2 |
2 |
| 13 |
10Y-80-00011 |
pin |
2 |
2 |
| 14 |
14Y-82-00003 |
pin |
2 |
2 |
| 15 |
14Y-82-00002 |
plate, lock |
2 |
2 |
| 16 |
01010-51635 |
M16×35 bolt |
4 |
4 |
| 17 |
01643-31645 |
washer |
4 |
4 |
| 18 |
01643-31232 |
gasket |
4 |
4 |
| 19 |
10Y-80-00012 |
cover, guard |
1 |
1 |
