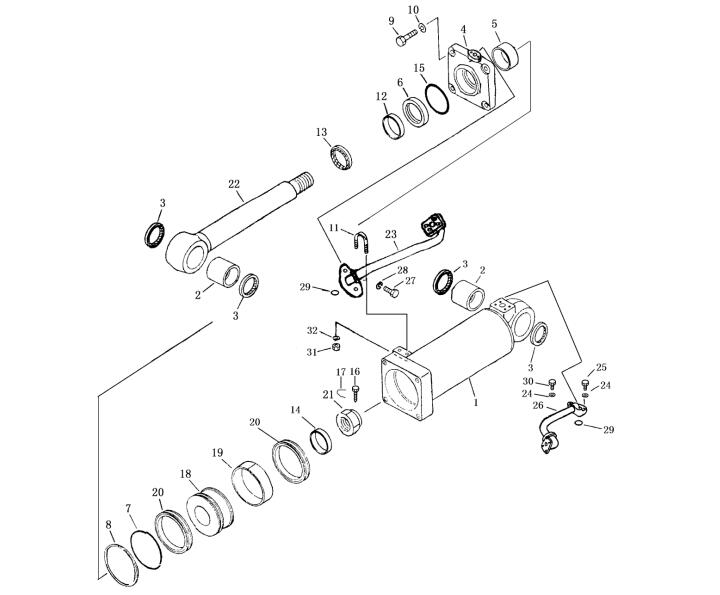

| RIPPER CYLINDER | |||
| Index No. | Part No. | Description | Q’ty |
| 10Y-64-05000 | ripper cylinder Ass’y | ||
| 1 | 10Y-64-05200 | 缸筒 body, cylinder | 1 |
| 2 | 10Y-64-05002 | bushing | 2 |
| 3 | 10Y-64-05500 | seal, dust | 4 |
| 4 | 10Y-64-05001 | bushing, guide | 1 |
| 5 | 16Y-84-62005 | ring, support | 1 |
| 6 | 16Y-84-62400 | ring, packing | 1 |
| 7 | 07000-05150 | O-ring | 1 |
| 8 | 07146-05152 | ring, guard | 1 |
| 9 | 01010-52770 | bolt | 4 |
| 10 | 01643-32780 | washer | 4 |
| 11 | 07283-22738 | U-clip | 1 |
| 12 | 16Y-84-62006 | seal | 1 |
| 13 | 16Y-84-62007 | seal, dust | 1 |
| 14 | 16Y-84-62003 | washer | 1 |
| 15 | 07000-12055 | O-ring | 1 |
| 16 | 01322-30820 | screw | 1 |
| 17 | 04059-01025 | iron-chain | 1 |
| 18 | 16Y-84-62002 | piston | 1 |
| 19 | 16Y-63-13500 | packing | 1 |
| 20 | 16Y-63-13008 | bushing, guide | 2 |
| 21 | 16Y-84-62001 | nut | 1 |
| 22 | 10Y-64-05100 | rod, piston | 1 |
| 23 | 10Y-64-05300 | tube | 1 |
| 24 | 01643-30823 | washer | 4 |
| 25 | 01010-50840 | bolt | 2 |
| 26 | 10Y-64-05400 | tube | 1 |
| 27 | 01010-51230 | bolt | 2 |
| 28 | 01643-31232 | washer | 2 |
| 29 | 07000-13030 | O-ring | 2 |
| 30 | 01010-50850 | bolt | 2 |
| 31 | 01580-31008 | nut | 2 |
| 32 | 01643-31032 | washer | 2 |
