Shantui SD13 Hydraulic Control Valve Assembly 16Y-60-05000 701-33-12006
Part Name: Hydraulic Control Valve Assembly
Part Number: 16Y-60-05000 701-33-12006 701-33-32005 701-33-32113 701-30-51002
Machine Model: SD13
Hotline:0086-18052293627 (whatsapp & wechat)
Mail: bulldozer@cnfocusgroup.com
|

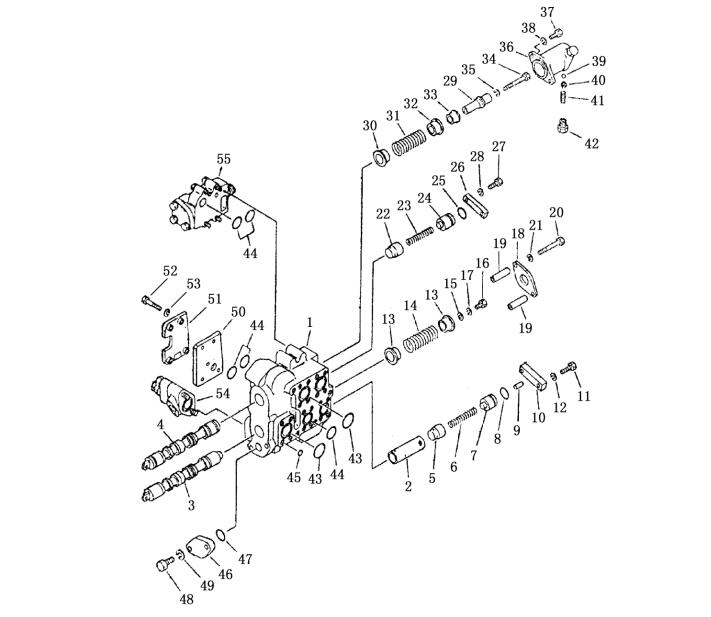

FIG.603 BLADE CONTROL VALVE ASS’Y |
|
| Index No. |
Part No. |
Description |
Q’ty |
|
16Y-60-05000 |
hydraulic control valve ass’y |
1 |
|
(701-33-12006) |
|
|
| 1 |
701-33-32005 |
valve body ass’y |
1 |
| 1 |
701-33-32113 |
body ,control valve |
1 |
| 2 |
701-33-32221 |
collar |
1 |
| 3 |
701-33-31480 |
spool |
1 |
| 4 |
701-33-31470 |
spool |
1 |
| 5 |
701-33-32130 |
element, valve |
1 |
| 6 |
701-33-32140 |
spring |
1 |
| 7 |
701-33-32152 |
pedestal |
1 |
| 8 |
07000-13025 |
O-ring |
1 |
| 9 |
04020-00514 |
pin , dowel |
1 |
| 10 |
701-33-32160 |
plate |
1 |
| 11 |
01010-31240 |
bolt |
2 |
| 12 |
01602-01236 |
washer ,spring |
2 |
| 13 |
701-33-31370 |
pedestal, bearing |
2 |
| 14 |
701-31-31130 |
spring |
1 |
| 15 |
701-33-31210 |
washer |
1 |
| 16 |
01010-31220 |
bolt |
1 |
| 17 |
01602-01236 |
washer ,spring |
1 |
| 18 |
701-33-46340 |
plate |
1 |
| 19 |
701-33-31460 |
collar |
2 |
| 20 |
01010-31095 |
bolt |
2 |
| 21 |
01602-01030 |
washer ,spring |
2 |
| 22 |
701-33-31120 |
valve |
1 |
| 23 |
701-33-31130 |
spring |
1 |
| 24 |
701-33-31150 |
seat |
1 |
| 25 |
07000-13035 |
O-ring |
1 |
| 26 |
701-33-31160 |
plate |
1 |
| 27 |
01010-31235 |
bolt |
1 |
| 28 |
01602-01236 |
washer ,spring |
2 |
| 29 |
701-31-31121 |
detent |
1 |
| 30 |
701-33-31380 |
pedestal, bearing |
1 |
| 31 |
701-31-31130 |
spring |
1 |
| 32 |
701-33-31390 |
retainer |
1 |
| 33 |
701-33-31281 |
collar |
1 |
| 34 |
701-33-31292 |
bolt |
1 |
| 35 |
01602-01236 |
washer ,spring |
1 |
| 36 |
701-33-31311 |
case |
1 |
| 37 |
01010-31030 |
bolt |
2 |
| 38 |
01602-01030 |
washer ,spring |
2 |
| 39 |
701-33-31320 |
ball |
3 |
| 40 |
701-33-31330 |
guide columns |
3 |
| 41 |
701-33-31340 |
spring |
3 |
| 42 |
701-33-31350 |
plug |
3 |
| 43 |
07000-13045 |
O-ring |
3 |
| 44 |
07000-13035 |
O-ring |
6 |
| 45 |
07000-02015 |
O-ring |
23 |
| 46 |
701-33-31360 |
plate |
1 |
| 47 |
07000-13040 |
O-ring |
1 |
| 48 |
01010-31440 |
bolt |
2 |
| 49 |
01602-01442 |
washer ,spring |
2 |
| 50 |
701-33-32191 |
plate |
1 |
| 51 |
701-33-32240 |
plate, stopper |
1 |
| 52 |
01010-31260 |
bolt |
4 |
| 53 |
01602-01236 |
washer ,spring |
4 |
| 54 |
701-30-51002 |
main relief valve ass’y |
1 |
| 55 |
701-30-62002 |
suction valve ass’y |
1 |
